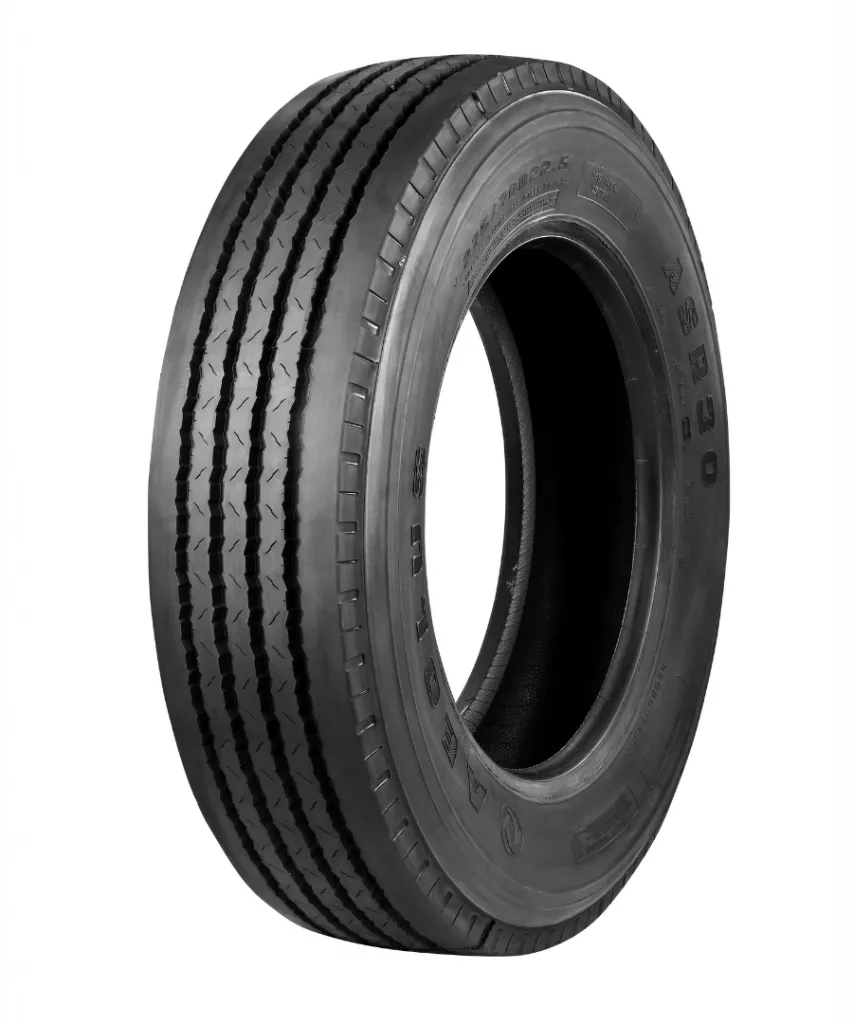

ASR30
- Reinforced tyre shoulders, designed for low loaders
- Rubber compound with low rolling resistance/optimized rolling resistance for more kilometres
- Can be used in all necessary axle positions in the low loader segment
- High load bearing capacity of five to six tonnes per axle, depending on configuration
Application: Regional Transport
Axle Position: All Axles
8.25R15 Specifications
| Size | 8.25R15 |
| Pattern | ASR30 |
| LI/SS | 143/141G(141.140J) |
| Ply rating | 18 |
| TL/TT | TT |
| Application | Regional Transport |
| 3PMSF | Yes |
| M+S | Yes |
| Diameter (mm) | 836 |
| Width (mm) | 236 |
| Rolling circumference (mm) | 2550 |
| Recommended rim | 6.50 |
| Tread (mm) | 13 |
| Load capacity (kg-km/h) | 2720 |
| Load capacity (kg-km/h) dual | 2570 |
| Air pressure (bar) | 8.5 |
| Wet grip | B |
| Fuel efficiency | D |
| Sound (decibel) | 73dB |
| Axle position | Steer axle |
10.00R15 Specifications
| Size | 10.00R15 |
| Pattern | ASR30 |
| LI/SS | 148/145G(146/144J) |
| Ply rating | 18 |
| TL/TT | TT |
| Application | Regional Transport |
| 3PMSF | Yes |
| M+S | Yes |
| Diameter (mm) | 924 |
| Width (mm) | 283 |
| Rolling circumference (mm) | 2818 |
| Recommended rim | 7.5 |
| Tread (mm) | 13.5 |
| Load capacity (kg-km/h) | 3150 |
| Load capacity (kg-km/h) dual | 2900 |
| Air pressure (bar) | 8.5 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 71dB |
| Axle position | Steer axle |
255/70R22.5 Specifications
| Size | 255/70R22.5 |
| Pattern | ASR30 |
| Ply Rating | 16 |
| Single Max Load (kg) | 2500 |
| Dual Max Load (kg) | 2300 |
| Single (kPa) | 830 |
| Dual (kPa) | 830 |
| LI/SS | 140/137M |
| Second LI/SS | 140/140L |
| Tread depth (mm) | 14.5 |
| M+S | Yes |
275/70R22.5 Specifications
| Size | 275/70R22.5 |
| Pattern | ASR30 |
| LI/SS | 148/145M |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Regional Transport |
| 3PMSF | Yes |
| M+S | Yes |
| Diameter (mm) | 964 |
| Width (mm) | 272 |
| Loaded radius (mm) | 446 |
| Rolling circumference (mm) | 2940 |
| Recommended rim | 8.25 |
| Tread (mm) | 15 |
| Load capacity (kg-km/h) | 3150 |
| Load capacity (kg-km/h) dual | 2900 |
| Air pressure (bar) | 9 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 71dB |
| Axle position | Steer axle |
