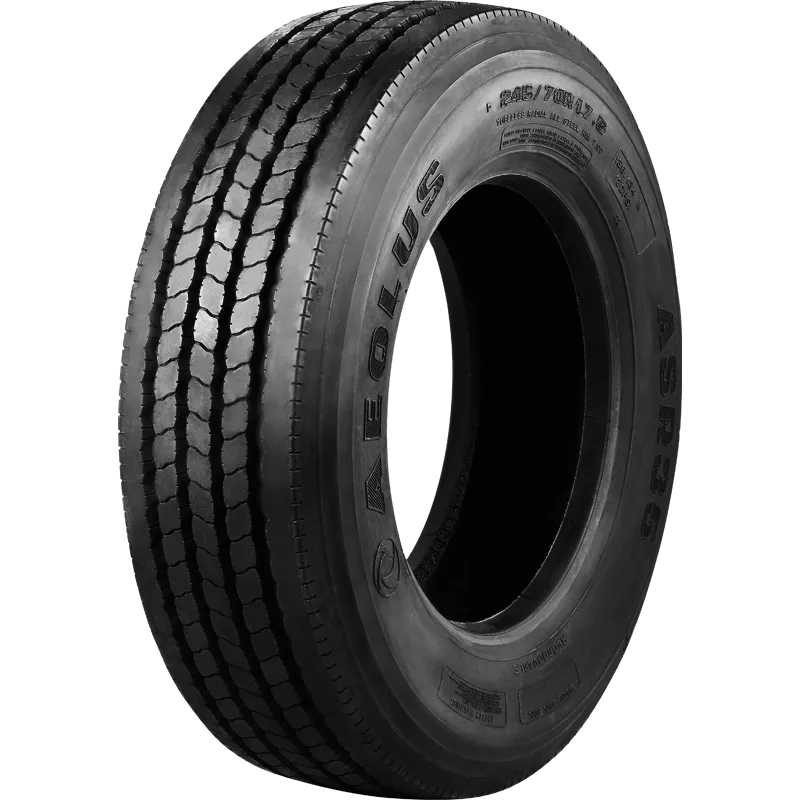

ASR35
- Extra-wide tread and large ground contact area for greater safety
- Optimized adhesion, greater resistance to damage Special rubber compound for optimum traction and short braking distances
- Precise manoeuvrability thanks to a specially designed steer axle profile
Application: Regional Transport
Axle Position: Steer Axle
For steer axles on light goods vehicles
The development team has worked in cooperation with the back office team at Heuver, the importer, to produce a specification which meets the requirements profile and allows these tyres to withstand the familiar, extremely tough conditions to which they will be exposed every day as the vehicles on which they are fitted perform both new and existing duties, such as delivery and courier services.
This specification includes a robust basic structure and casing, including the side wall design, the appropriate design for extremely precise steering and cornering, and the requisite directional stability during really fast stages when time pressure means drawing on reserves.
225/75R17.5 Specifications
|
Size |
225/75R17.5 |
|
Pattern |
ASR35 |
|
LI/SS |
129/127M |
|
Ply rating |
16 |
|
TL/TT |
TL |
|
Application |
Regional Transport |
|
3PMSF |
Yes |
|
M+S |
Yes |
|
Diameter (mm) |
779 |
|
Width (mm) |
224 |
|
Loaded radius (mm) |
368 |
|
Rolling circumference (mm) |
2391 |
|
Recommended rim |
6.75 |
|
Tread (mm) |
13 |
|
Air pressure (bar) |
8.3 |
|
Wet Grip |
C |
|
Fuel efficiency |
E |
|
Sound (decibel) |
73dB |
|
Axle position |
Steer axle |
235/75R17.5 Specifications
| Size | 235/75R17.5 |
| Pattern | ASR35 |
| Ply Rating | 16 |
| Single Max Load (kg) | 2000 |
| Dual Max Load (kg) | 1850 |
| Single (kPa) | 830 |
| Dual (kPa) | 830 |
| LI/SS | 132/129M |
| Second LI/SS | — |
| Tread depth (mm) | 13 |
| M+S | Yes |
