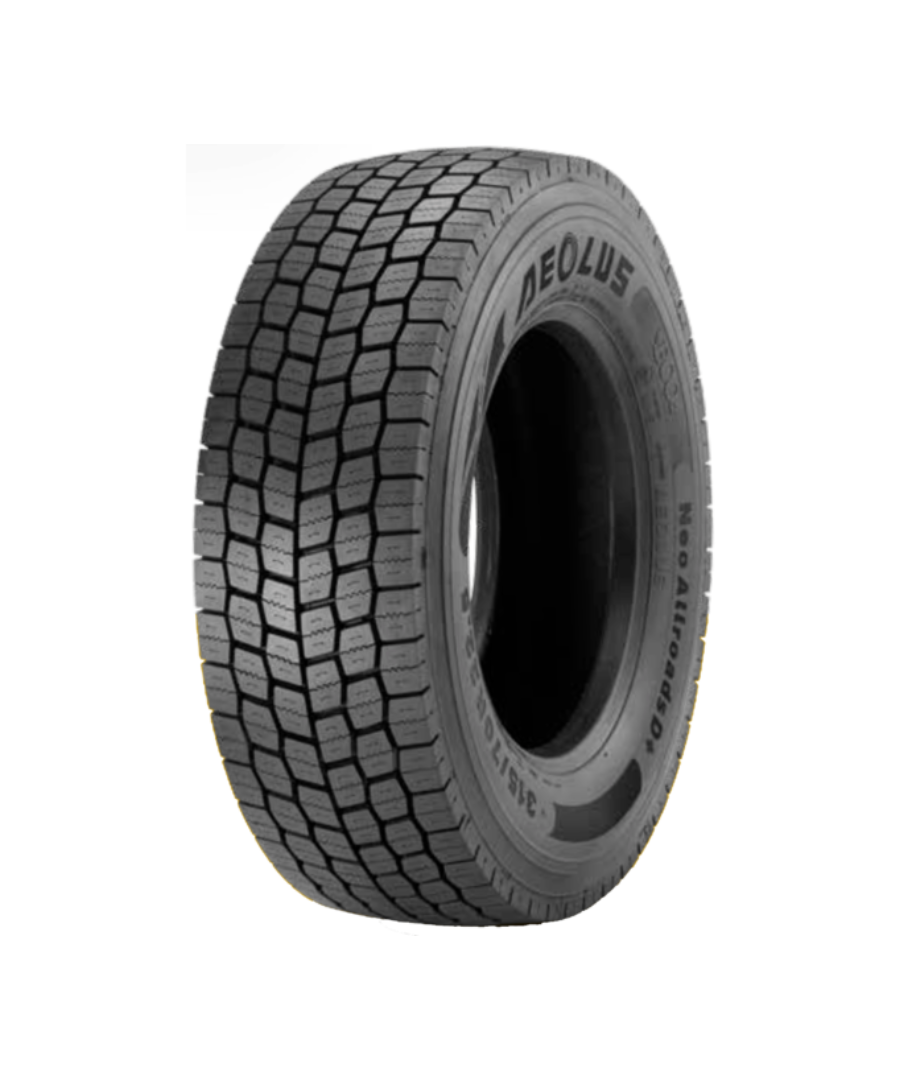

Neo Allroads D+
- Excellent life-span thanks to wider directional pattern design with deeper grooves
- Perfect handling on dry and wet surfaces thanks to refined pattern structure (3D sipes)
- Extra belt layer (FRC) reinforces casing, improves re-profiling and enables re-profiling
- Lasting high traction thanks to special groove design (sipes)
- Uniform wear thanks to reinforced shoulder design (RSR)
Application: Regional Transport
Axle Position: Drive Axle
11R22.5 Specifications
| Size | 11R22.5 |
| Pattern | Neo Allroads D+ |
| Ply Rating | 16 |
| Single Max Load (kg) | 3000 |
| Dual Max Load (kg) | 2725 |
| Single (kPa) | 830 |
| Dual (kPa) | 830 |
| LI/SS | 146/143L |
| Second LI/SS | — |
| Tread depth (mm) | 22.5 |
| M+S | Yes |
295/80R22.5 Specifications
|
Size |
295/80R22.5 |
|
Pattern |
Neo Allroads D+ |
|
LI/SS |
152/148M |
|
Ply rating |
18 |
|
TL/TT |
TL |
|
Application |
Regional Transport |
|
3PMSF |
Yes |
|
M+S |
Yes |
|
Diameter (mm) |
1062 |
|
Width (mm) |
298 |
|
Rolling circumference (mm) |
3239 |
|
Recommended rim |
9.00 |
|
Tread (mm) |
22 |
|
Load capacity (kg-km/h) |
3550 |
|
Load capacity (kg-km/h) dual |
3150 |
|
Air pressure (bar) |
8.5 |
|
Wet grip |
B |
|
Fuel efficiency |
E |
|
Sound (decibel) |
74dB |
|
Axle position |
Drive axle |
315/70R22.5 Specifications
| Size | 315/70R22.5 |
| Pattern | Neo Allroads D+ |
| Ply Rating | 18 |
| Single Max Load (kg) | 3750 |
| Dual Max Load (kg) | 3350 |
| Single (kPa) | 900 |
| Dual (kPa) | 900 |
| LI/SS | 154/150L |
| Second LI/SS | 152/148M |
| Tread depth (mm) | 21 |
| M+S | Yes |
