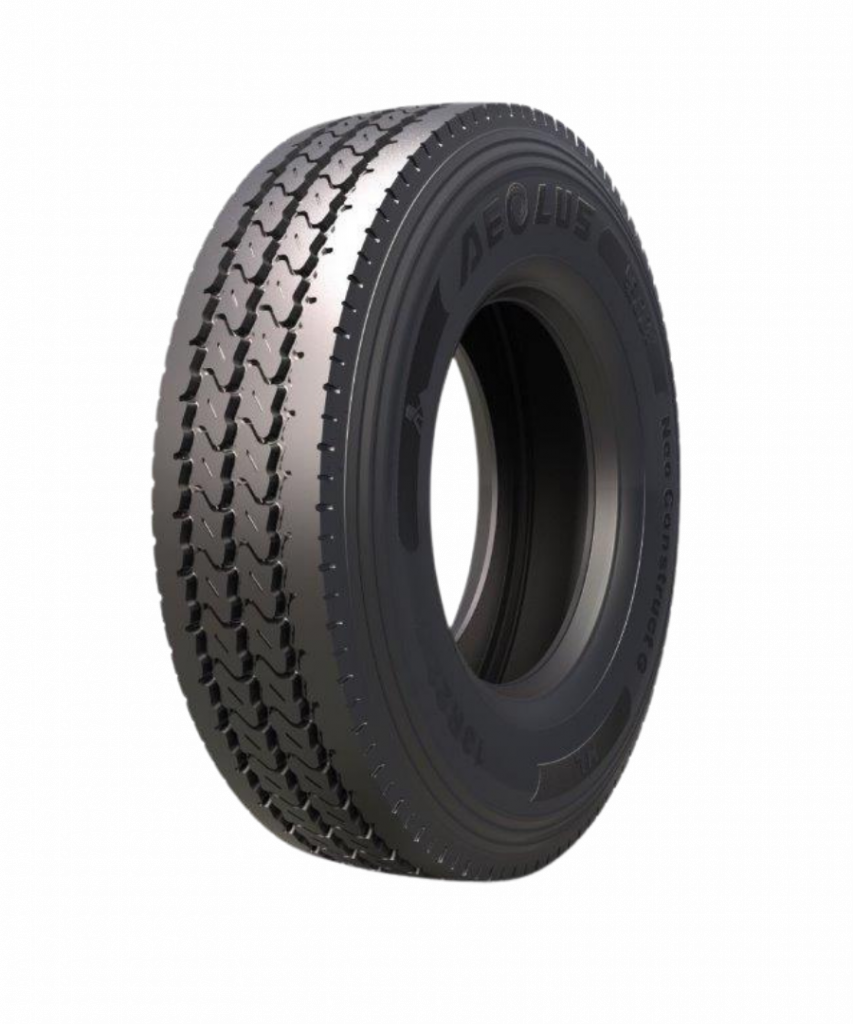

Neo Construct G
- Excellent self-cleansing properties thanks to interchanging pattern design
- Minimum wear due to extremely stiff pattern design
- Special transverse grooves improve traction and prevent irregular wear
- Wider and deeper transverse grooves improve kilometrage
- Optimized heel and heel-core design for heavy loads Uniform wear thanks to special shoulder design
- Long life-span thanks to extra anti-wear layer
Application: On/Off Road
Axle Position: All Axles
11R22.5 Specifications
| Size | 11R22.5 |
| Pattern | Neo Construct G |
| Ply Rating | 16 |
| Single Max Load (kg) | 3000 |
| Dual Max Load (kg) | 2725 |
| Single (kPa) | 830 |
| Dual (kPa) | 830 |
| LI/SS | 146/143L |
| Second LI/SS | — |
| Tread depth (mm) | 20 |
| M+S | Yes |
13R22.5 Specifications
| Size | 13R22.5 |
| Pattern | Neo Construct G |
| LI/SS | 156/150K(154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | On-offroad |
| 3PMSF | Yes |
| M+S | Yes |
| Diameter (mm) | 1125 |
| Width (mm) | 318 |
| Loaded radius (mm) | 521 |
| Rolling circumference (mm) | 3431 |
| Recommended rim | 9 |
| Tread (mm) | 18 |
| Air pressure (bar) | 8.75 |
| Load capacity (kg-km/h) | 4000 |
| Load capacity (kg-km/h) dual | 3350 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 73dB |
| Axle position | All axles |
